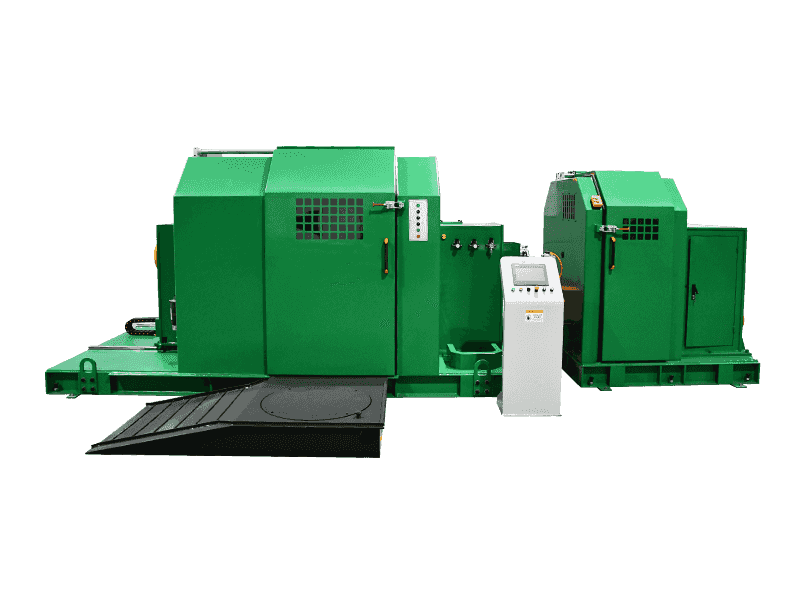

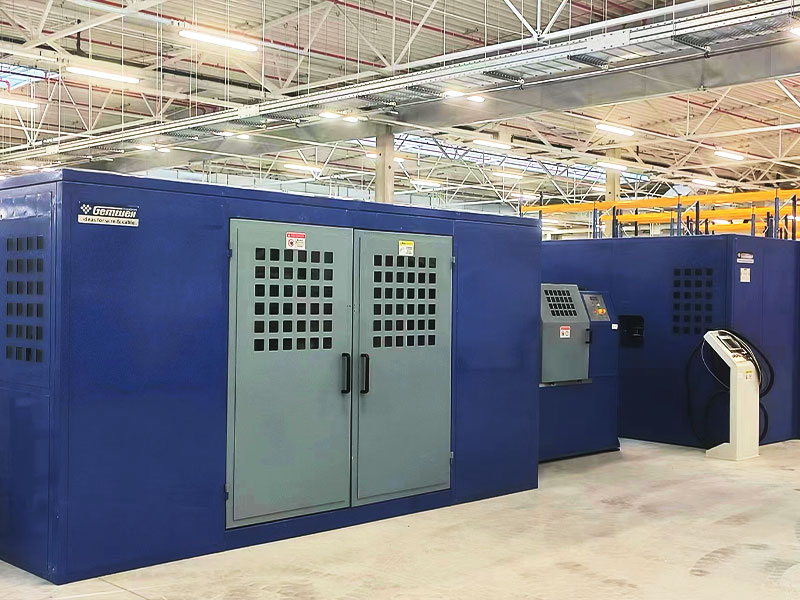

Heavy-duty separated Cantilever Single Twisting Machine(External lead pulley and Torque take-up)

Heavy-Duty Split Type Cantilever Single Twisting Machine (External Capstan and Torque Take-Up)

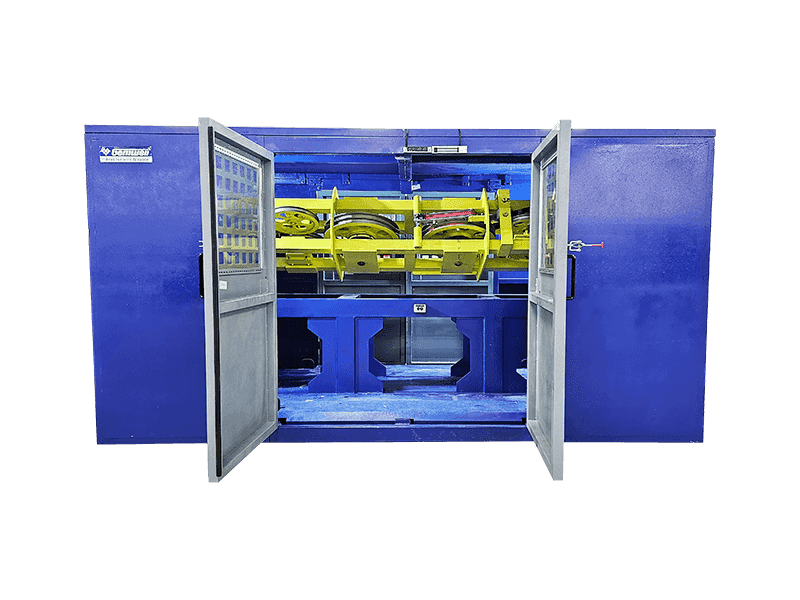

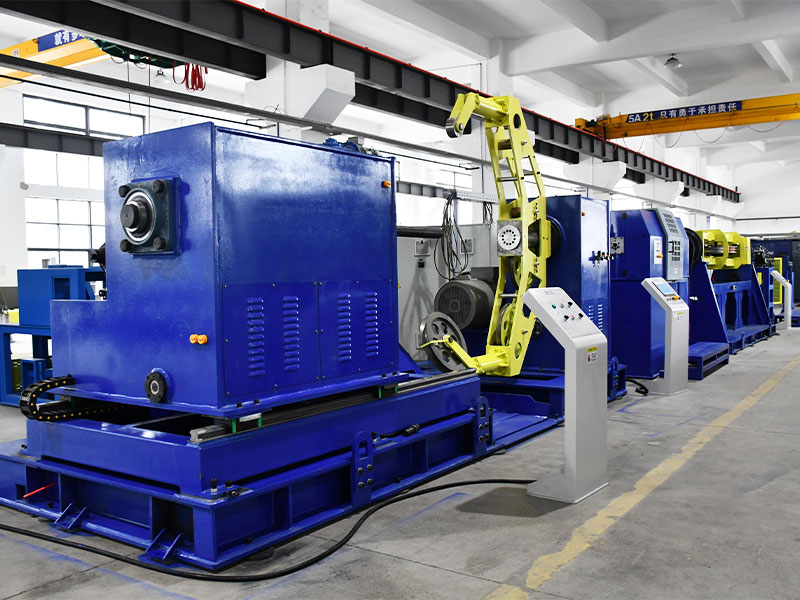

The stranding cantilever is seperated from the external capstan of the Heavy-Duty Split Type Cantilever Single Twisting Machine (External Capstan and Torque Take-Up). The two are mechanically pivoted and rotate synchronously. The take-up reel is equipped with a torque motor, and it rotates concentrically with the stranding cantilever. The stranding cantilever motor drives the stranding cantilever and the external capstan rotating part to rotate synchronously at a constant speed; the take-up motor drives the take-up reel to rotate and roll up the  wire at a variable speed. The external capstan is composed of a capstan wheel and multiple multi-groove tension pulleys. The motor drives the capstan wheel to rotate, driving the wires to advance and twist at a constant linear speed. A speed difference is formed because of  the constant speed of the cantilever and the variable speed of the take-up spindle. The rotational speed difference ratio depends on the stranding pitch setting. The twisted wires are wound onto the spool by the power of take-up motor due to speed difference. As the wires accumulate on the reel from empty to full, the diameter gradually increases. The control system automatically adjusts the variable speed of the take-up motor, and the differential automatically transverse to the third variable rotational speed to the take-up spindle. This is how the production of twisted wires is maintained at a constant line speed. This machine can be equipped with different types of auxiliary equipment such as pay-off racks, center rotating wrapping machines, and longitudinal wrapping machines to realize the twisting of various wires with an outer diameter within 10-30mm. It has high production efficiency, low faults, and the finished wire products have excellent performance indicators. This type is suitable for stranding wires that require higher performance qualifications.

Inquiry +
PREV：No previous article
NEXT：No next article
Product Details

COMPONENTS

● Pay-off stand

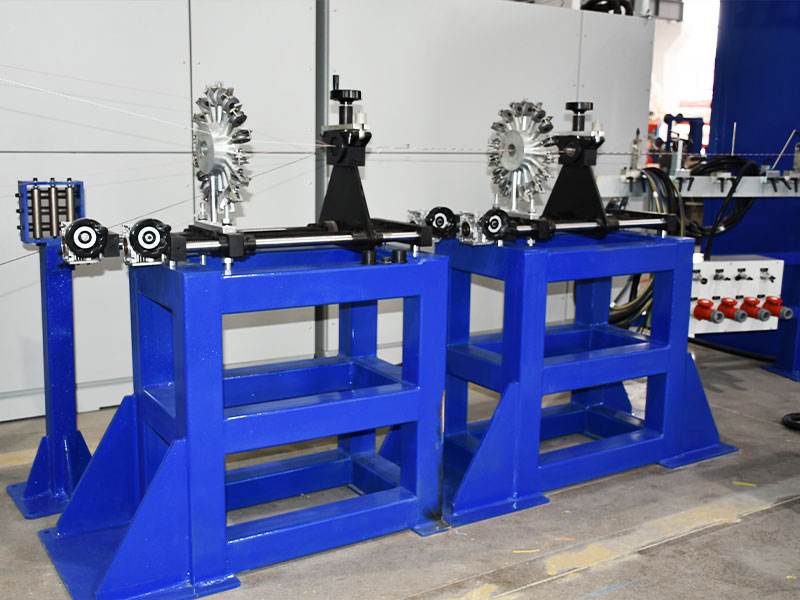

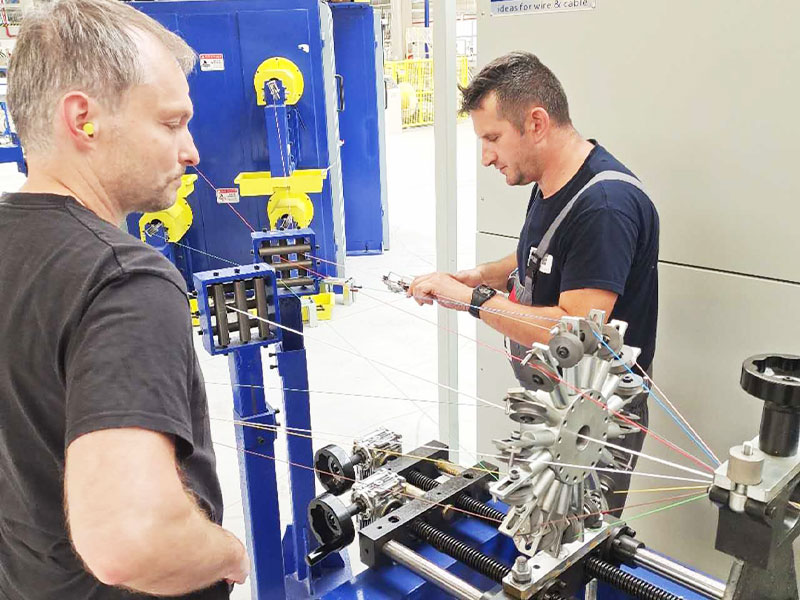

● Wire concentrator
● Constant tension longitudinal taping maching - optional

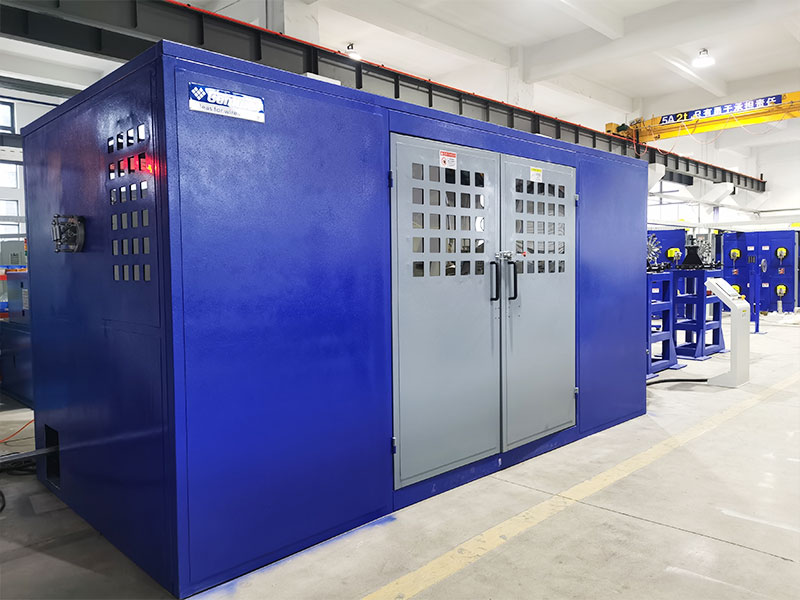

● Dual-wheel multi-groove rotational capstan
● Central rotating taping machine - optional

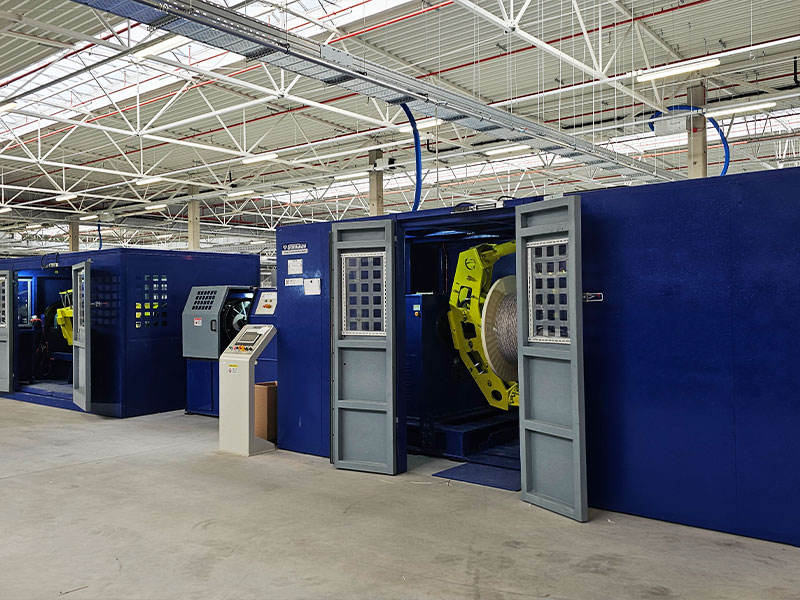

● Heavy-Duty Split Type Cantilever Single Twisting Machine (External Capstan and Torque Take-Up)

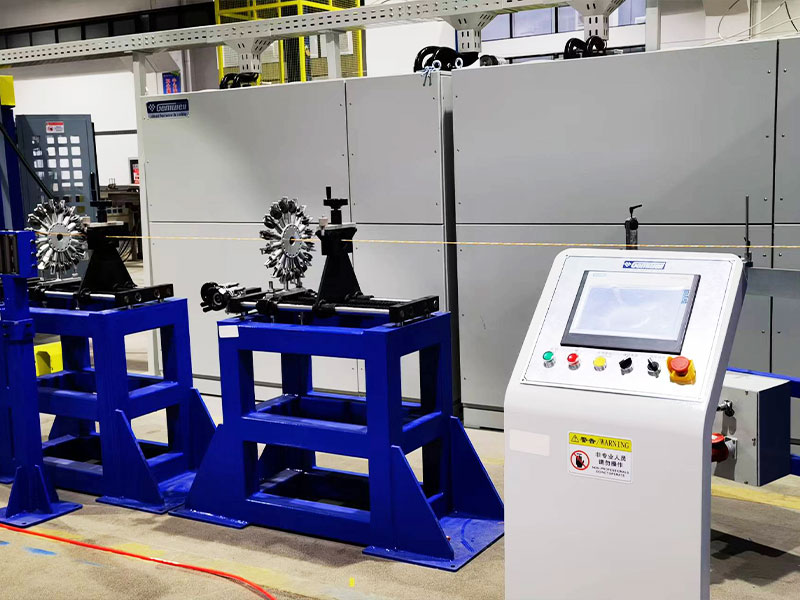

● Control System
● Peripheral auxiliary equipment can be customized


TECHNICAL SPECIFICATIONS

Main technical parameters 630 type 800 type 1000type 1250 type
Suitable wire type It is suitable for draging chain cable, control cable, power cable, data cable, power cord and other multi soft core wires in large size cabling.
Core wire specification Ø0.8-3.0 Ø1.5-4.0 Ø2.0-6.0 Ø3.5-8.0
Outer diameter of stranded wire Ø3-8 Ø5-12 Ø7-18 Ø10-25
Pay-off specifications 400-500 400-630 400-630 630-1000

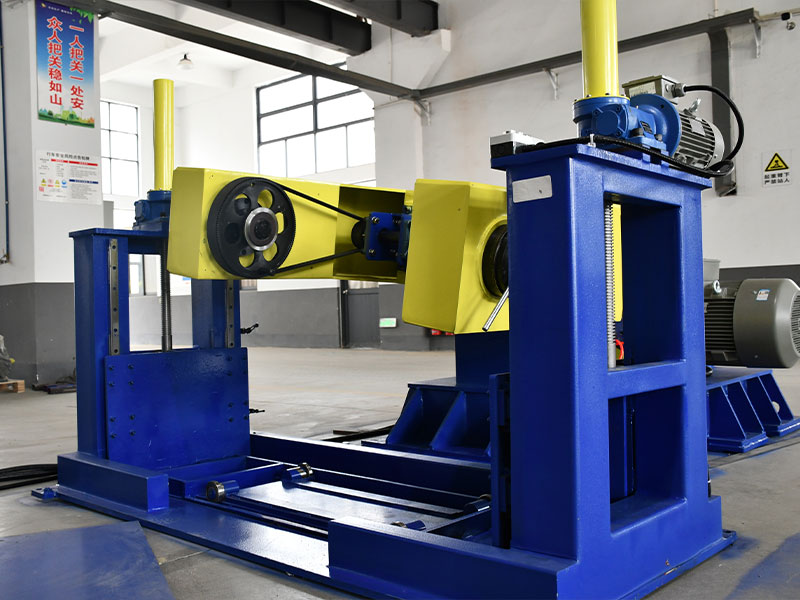

Pay-off type It can be configured with various power or passive pay-off stands such as shaft type, shaftless type, back twist type, etc
Take-up specifications 630x475 800x600 1000x750 1250x950
The inner hole of the coil Ø80 Ø127
Overall machine structure Take the center line of single twist main model as an axis, the production line from pay-off to take-up is linearly distributed in split type structure.
Stranding die The mold is fixed at the mold hole behind the wire concentrator, with a standard mold outer diameter of 25.
Back twist method The standard configuration includes a power-driven or passive back twist pay-off machine, which can achieve back twist pay-off and flexible cable formation. Other types of pay-off racks can also be customized.
Back twisting ratio 0-120%
Stranding direction S/Z
Single twisting machine rotation speed MAX600RPM MAX500RPM MAX400RPM MAX320RPM
Wire-speed range 20-80 20-80 20-80 20-80
Wire twisted pitch 20-120 30-180 40-250 50-350
Pitch accuracy When operating at a constant speed, the pitch accuracy is within ±1.5mm. During the start/stop process, the pitch accuracy is within ±3mm.

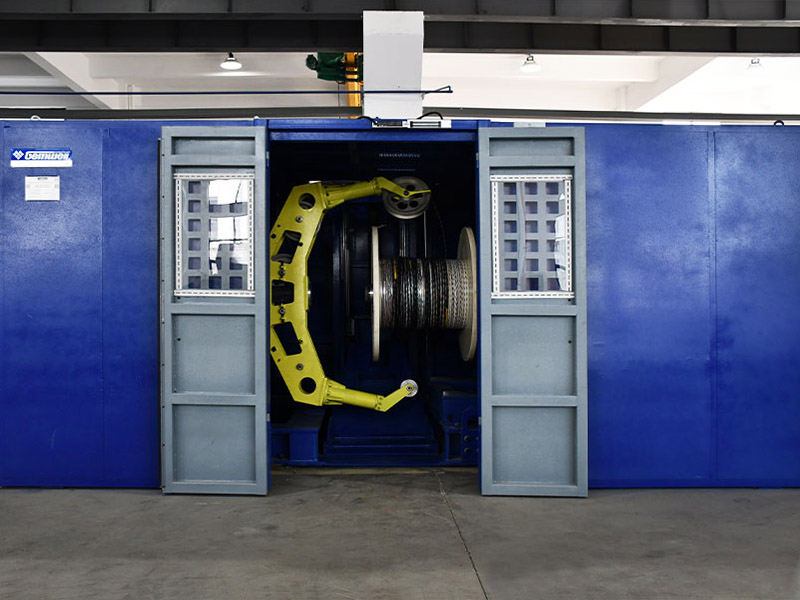

Cantilever material Lightweight and low air resistance rectangle steel pipe structure.
Cantilever power 18.5KW 30KW 45KW 55KW
Main engine brake Pneumatic disc brake  Hydraulic disc brake
Capstan type The external capstan is double-wheel rotating capstan system with driven wheel, taking up the wire through the cumulative diameter of the dynamic winding of the take-up reel. And the encoder detects the line speed of the entire machine, providing PID speed feedback to the take-up motor.

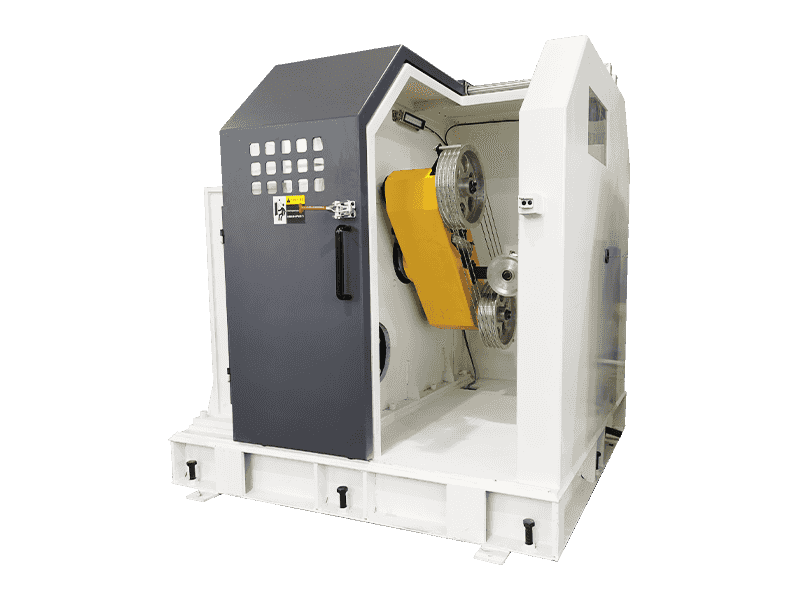

Capstan type The rotating capstan is placed in front of the main twister, separated from the main unit. The rotating body is driven by an independent motor. It has a multi-groove double-wheel capstan system, with the capstan wheel as the fixed wheel. The external motor drives the capstan wheel to rotate through a mechanical structure. The driven wheel is the free wheel that can have linear reciprocating displacement. The external servo motor transmits constant tension to the driven wheel through mechanical transmission. When the driven wheel is pulled by the wire, it outputs a voltage signal, providing PID torque feedback control to the take-up motor.
Capstan wheel diameter Ø250 Ø350 Ø500 Ø700
Capstan power 3.7KW 5.5KW 22KW 30KW
Driven wheel tension motor  3.7KW servo motor 5.5KW servo motor 7.5KW servo motor 11KW servo motor
Host reel lifting Hydraulic pallet electric lifting and the take-up reel are barrier-free to access into the mainframe.
Reel tightening method Top cone nut tightening take-up reel
Reel Loading weight MAX400KG MAX600KG MAX1000KG MAX1500KG
Take-up reel power 18.5KW 30KW 45KW 55KW
Take-up wire position arrangement 1.5KW
Pay-off material run-out detection Alarm and automatic stop when the core wire is about to run out/alarm and automatic stop when the wire is broken.
Pay-off tension type The standard is to adjust the tension by moving or adding/removing weight blocks, and it can also be customized to adjust tension by using a servo motor.
Take-up tension type 2.2KW servo motor 2.2KW servo motor 3.7KW servo motor 3.7KW servo motor
Taping material AL, MYLAR, Cotton tape, Non-woven fabric
Outer diameter of the tape reel Ø350 Ø450
Tape width 5-30mm 8-40mm
Hole of a tape reel 50.8/76 Universal
Taping power 2.2KW 3.7KW
Taping speed MAX1800RPM MAX1500RPM
Taping tension units Standard to use magnetic powder clutch, hysteresis clutch can be customized.
Taping strip storage length 400mm, strip change without cutting the wire.
Strip breakage inspection Automatic stop when the strip is about to be exhausted and broken
Overlap rate 0-50%, programme setting
Longitudinal taping tension units Standard to use magnetic powder clutch, hysteresis clutch can be customized.
Longitudinal taping mould Seam wrapping tubes and other types can be customized.
Tension display Standard is without tension display. Communication type digital pressure sensor, tension overrun alarm, and automatic shutdown can be customized.
Formula management A custom formulation management system enables data such as tension, temperature, extrinsic diameter, pitch, S/Z, line winding distance, and barometric pressure to be fed into the PLC, supporting data collection and import for digital production.
Safety protection Automatic detection and prediction of temperature /vibration /noise /pressure can be customized according to CE/CSA/UL standard design.
Spark detection Spark tester can be customized.
Power standards Standard is 3-phase 380V/50Hz and the power supply can be customised for different countries and regions.




PRODUCT FEATURES

● Efficient Speed: The single twisting cantilever is subjected to static and dynamic balance testing and calibration, resulting in less vibration and low noise. The main spindle operates at high speed continuously without generating heat, guaranteeing efficient speed.

● Accurate Pitch: The external rotating capstan drives multiple strands of wire movement, creating an accurate and stable pitch before the main twisting machine.

Due to the constant bottom diameter of the capstan wheel and the absence of other interfering factors, the pitch remains precise and stable.

● Efficient wire arrangement: The wire arrangement process adopts a box-shaped structure, where the wire reel moves back and forth in a straight line along with the wire take-up box, ensuring a neatly organized wire arrangement.

● Less Bending: The design of the capstan roller and the wire guide wheels adopt a large diameter, reducing the bending of the wire and avoiding damage to the pitch.

● Easier Operation: The machine base is barrier-free, without any crawling ramps. The wire spools can be directly pushed into the machine for loading and unloading, making the operation effortless.

● Intelligent: Recipe management, allowing for one-click retrieval of SOP recipes, one-click preparation for start-up, and one-click activation;Dynamic feedback on twist pitch and torque return is provided, fault detection, cable breakage detection, metre-to-shutdown, intelligent control.

● Easy maintenance: Customers outside of China can customize the use of the Profinet bus control, which ensures fast and low-interference signal transmission. As long as there is a communication network in any country or region, remote fault detection, troubleshooting, and maintenance services can be quickly implemented.
