Servo Spit Active Type Wire Taping Machine

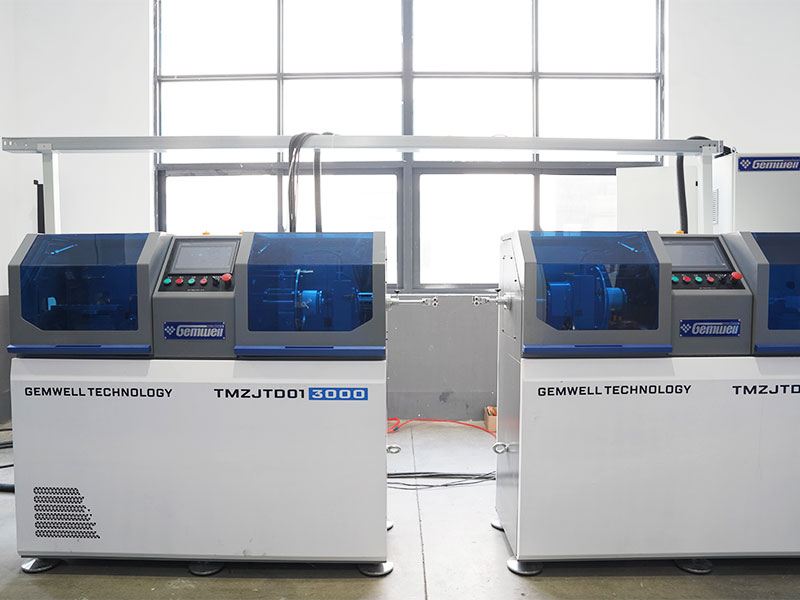

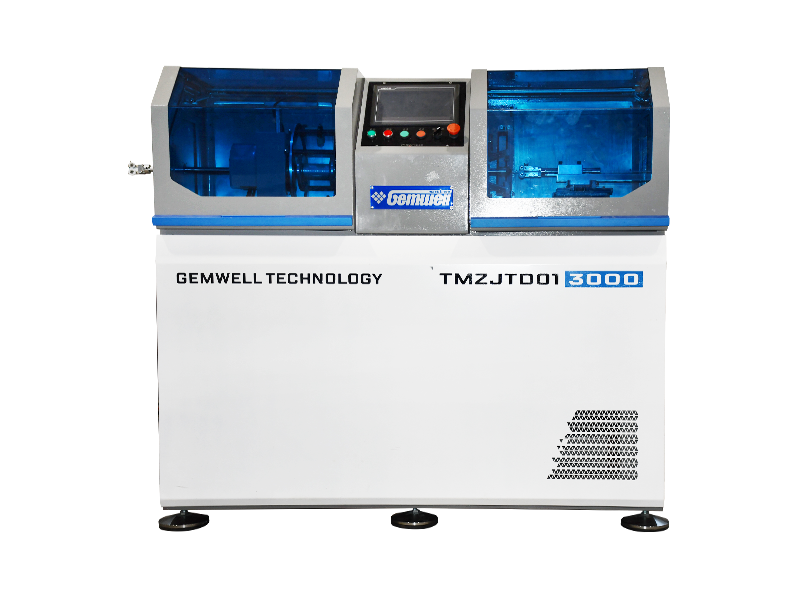

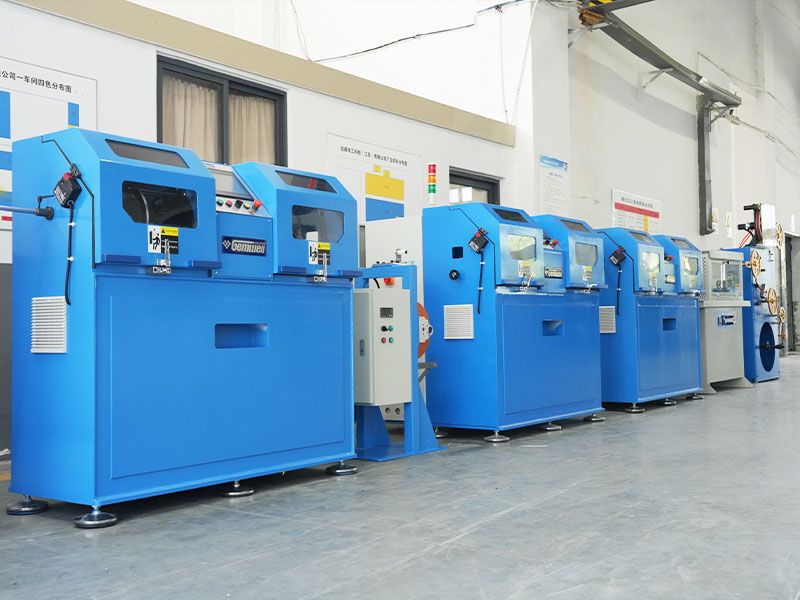

Servo Spit Active Type Taping Machine for Ultra-Fine Wire

Ultra-fine wires are used in various fields, such as mobile phones, laptops, iPads, medical, military, aerospace, micro-coaxial lines and etc.. Wires with a specification of AWG36 or above have the characteristics of small conductor diameter, low tensile strength, and narrow wrapping material width. When performing wrapping production and wrapping the tape material onto the outer surface of the conductor material, the wrapping process requires extremely low wrapping tension. The stability of taping pitch, tape tension, core wire tension is highly contributed to the qualification of the cable impedance, attenuation, return loss and some other testing indexes. Wrapping machines with excelent performance can not only produce high quality Ultra-Fine wire, but also achieve higher production yields, thus determining the market positioning tier and market competitiveness of wire manufacturers. Over the past 20 years, GEMWELL has been dedicated to the research and innovation of wrapping machines. Through continuous improvements and upgrades, GEMWELL Servo Spit Active Type Taping Machine for Ultra-Fine Wire has emerged as a better choice for replacing traditional wrapping machine models and processes. The following configuration is for a standard setup of two taping heads. Users can increase or decrease the number of wrapping heads according to different cable manufacturing processes. The specifications and types of take-up, pay-off, and capstan can also be customized and modified according to different wire diameter specifications.

Inquiry +
PREV：No previous article
NEXT：Servo Spit Active Type Taping Machine for Parallel Pair Signal Wire
Product Details

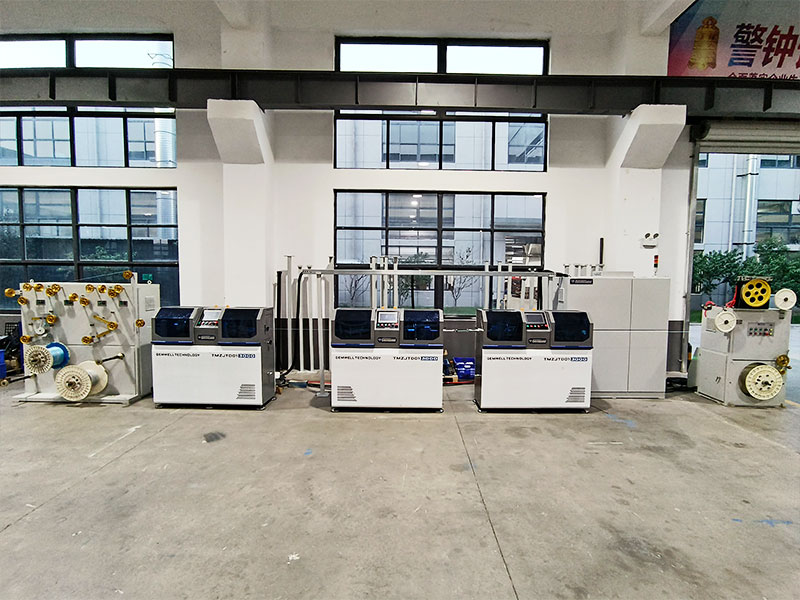

COMPONENTS

● Ø300 power pay-off stand 1 unit
● Tension stand 1 unit

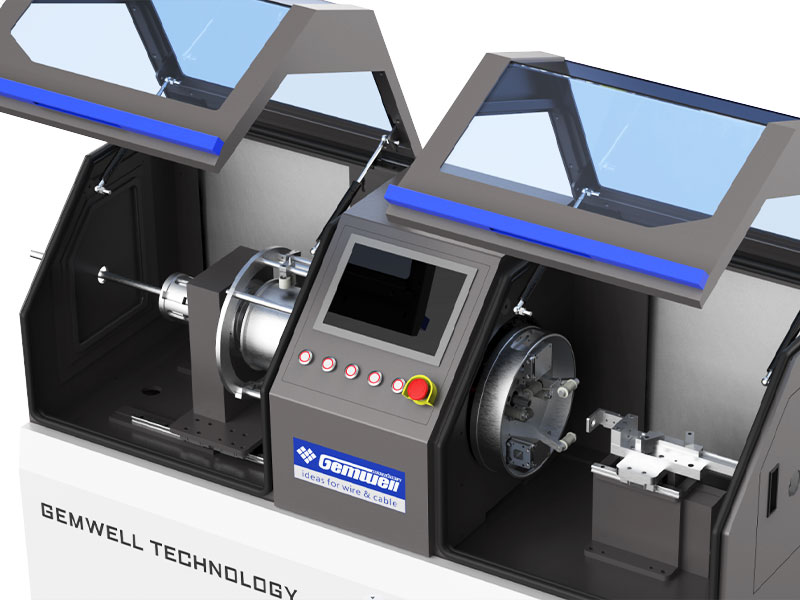

● Spit type active wrapping machine taping head 1 1 unit
● Diameter gauge
● Spit type active wrapping machine taping head 2 1 unit
● Diameter gauge
● Ø300 wheel type belt capstan 1 unit
● Spark tester
● Ø300 shaft type take-up machine 1 unit
● Control system 1 unit


TECHNICAL SPECIFICATIONS

Structure type Double-wheel pressure roller capstan spit type constant tension wrapping machine/active wrapping machine (Patent No. CN114649118A)
Suitable wire type Mainly used for fine coaxial line, fine signal line, can also be used for fine high-speed transmission lines, control lines, special cables and other round wire wrapping and wrapping tape.
Applicable materials AL, MYLAR, COPPER FOIL, PTFE, etc.
Applicable wire diameter Optimal range:Ø0.2-1.5mm
Product Specification Optimal range:Ø0.3-2.0mm
Maximum speed MAX2500RPM (no load), actual start-up speed is set according to the wire requirements
Wire speed range 0.5-10m/min, speed range is different according to different wire types.
Tape reel outer diameter Optimal range:Ø100*100
Tape width 1.5-10mm
Tape reel inner diameter 30mm
Wrapping pitch 0.5-10mm, program setting
Tension range 5N-50N/500g-5000g
Main motor power 3KW servo motion controller
Taping power 0.2KW servo motor
Wrapping tape tension 1.8KW servo motor
Take-up power 400-wheel taping tractor, 0.4KW servo gear motor
Pay-off power 0.4KW gear motor
Take-up power 0.4KW servo motor
Winding displacement power 0.4KW servo motion controller
Tape length 1 reel + 3 reels, without cutting the wire when changing reel
Tape inspection Automatic shutdown when the tape is about to be exhausted and broken.
Tape wrapping mould The inner mould of tape is fixed on the central conduit, the outer mould of the wire guide wheel is fixed on the tape storage tube. Both molds are extendable and movable.
Tape wrapping accuracy Pitch tolerance:± 1%, tension tolerance:± 1%.
Overlap rate 0-80%, program setting
Formula management Digital production, tension, outer diameter, pitch, S/Z, row distance, air pressure, and other data can be stored into the PLC.
Tension setting Tension elements of wrapping/pay-off/take-up/wrapping are servo motors, SOP process is stored in PLC.
Safety protection Comply with CE standard, with temperature/vibration/noise/pressure automatic detection and prediction.




PRODUCT FEATURES

● High productivity: The rotating body is statically balanced and dynamically balanced for testing and correction. When running, the machine has small vibration and low voice. The spindle does not generate heat during long-term continuous high-speed operation. It has high production efficiency and cost effectiveness.

● Stable tension: A double-wheel capstan roller is used to pull the strip out of the reel at a uniform speed to eliminate the tension changes caused by changes in the outer diameter of the tape tray. The wrapping tension is achieved by controlling the outer diameter of the finished cable, that is, the greater the tension, the smaller the outer diameter; the smaller the tension, the larger the outer diameter. After the double-wheel capstan roller, tape only passes through two guilding rollers which are very close to the center axis of the rotation to be wrapped directly on wire. Therefore, various influencing factors such as centrifugal force and wind resistance can be eliminated, resulting in stable tension.

● Accurate pitch: Taking the main capstan as the movement benchmark,  the main capstan and each rotating frame adopt a servo motion controller for precise interlocking motion control so that an accurate wrapping pitch can be obtained at any speed.

● Labor saving: A clamping device is installed at the wire inlet end of each wrapping head. The clamping force can be adjusted without damaging the wire; the wire can be withdrawn in the reverse direction; Configuration mode management, one-click retrieval of SOP formula, one-click startup preparation, and one-click start; Stop and shut down when the tape is broken/finished/metered, intelligent control, saving manpower.

● Low failure rate: no collector ring, no carbon brush, except for the regular replacement of wearing parts - the tape guiding roller, low failure rate.

Easy maintenance: Using Profinet bus control, fast signal transmission, low interference, remote fault detection cability. Troubleshooting and maintenance are available no matter the machine is in any country in the world, as long as there is a communication network, then rapid remote maintenance services can be provided.
