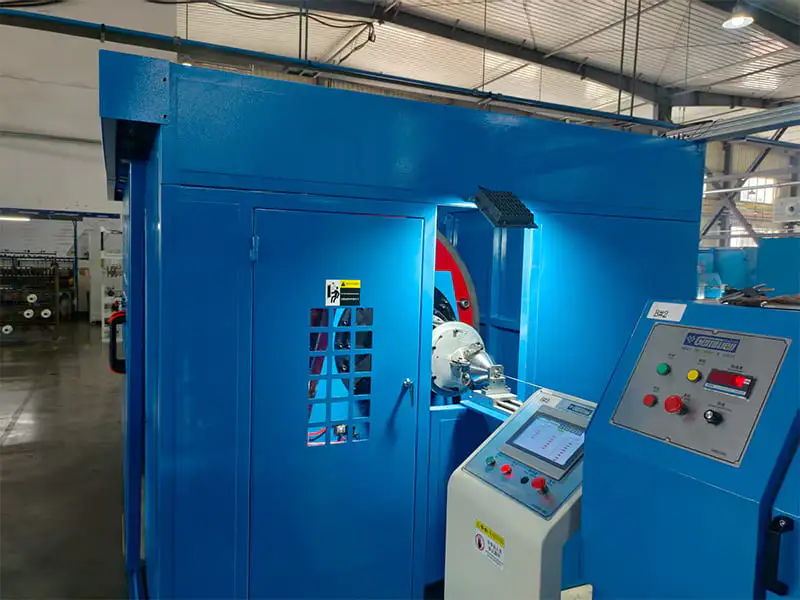

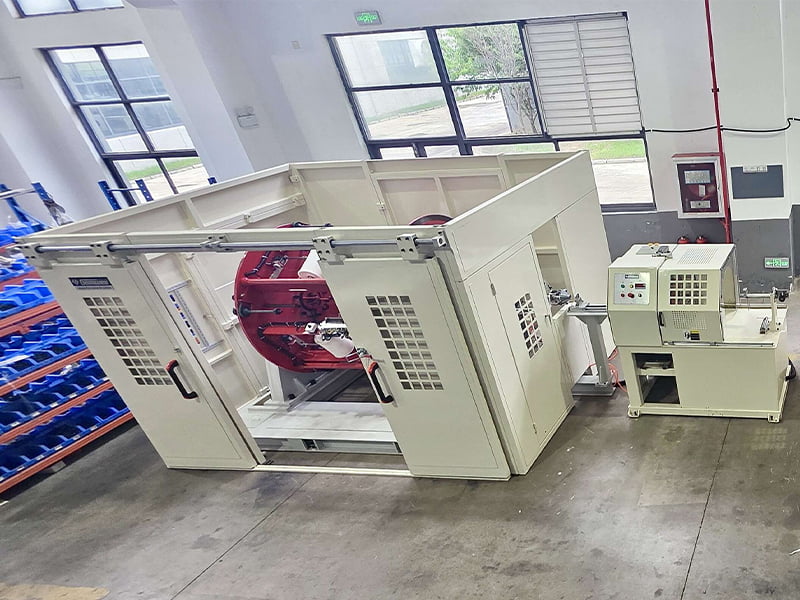

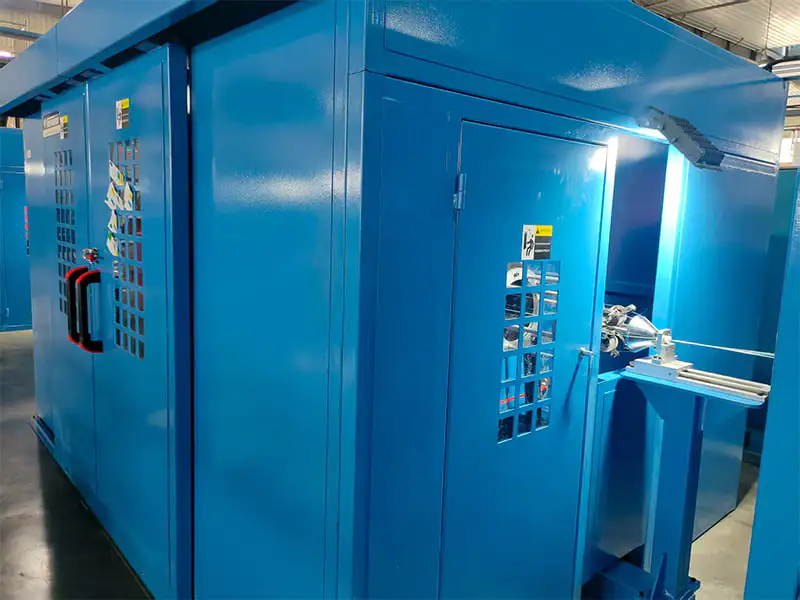

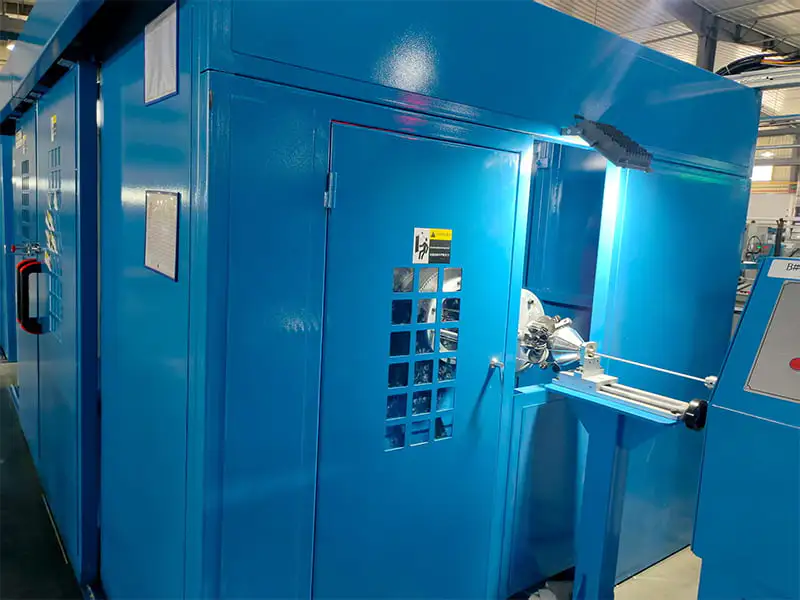

Ai High Speed Cable Active Payoff Type Planetary Stranding Line

To meet the high-speed data transmission requirements of data centers, AI high-speed server interconnects, 5G, big data, and other applications, we have developed AI high speed cable active payoff type planetary stranding line. This machine is specifically designed for stranding multi-core cables of parallel-pair flat cables into a finished cable, such as QSFP/SFP. Specially designed twisting cone locator shuttle prevents the flat cables from turning over or edge-rolling during the stranding process, ensuring that the cables are less prone to failure in high-density data center cabling environments. Different users will have different needs when ordering this machine. Our company can support personalized customization according to user needs. In terms of hardware, we can provide a variety of models and core accessories brands for users to choose from. In terms of electrical control software, we can also provide economical and practical or the most advanced electrical control methods. Due to different overall configurations, the price of this machine also varies greatly. Therefore, the main factor that determines the price of this machine is the user's product configuration level positioning. In addition, because this product is a non-standardized customized equipment with only small lot production, it takes longer period for design, manufacturing, installation, and debugging cycle is long. Users must reserve sufficient procurement cycles to achieve perfect product delivery.

Inquiry +

Name	AI HIGH SPEED CABLE ACTIVE PAYOFF TYPE PLANETARY STRANDING LINE
Reel size	Ф300mm			Ф400mm
Reel number	4 head	6 head	8 head	4 head	6 head	8 head
Application	Suitable in stranding and taping for the process of stranding and taping multi-core cables in one step, especially for cabling QSFP flat wire, to prevent the flat cable edge flipping.

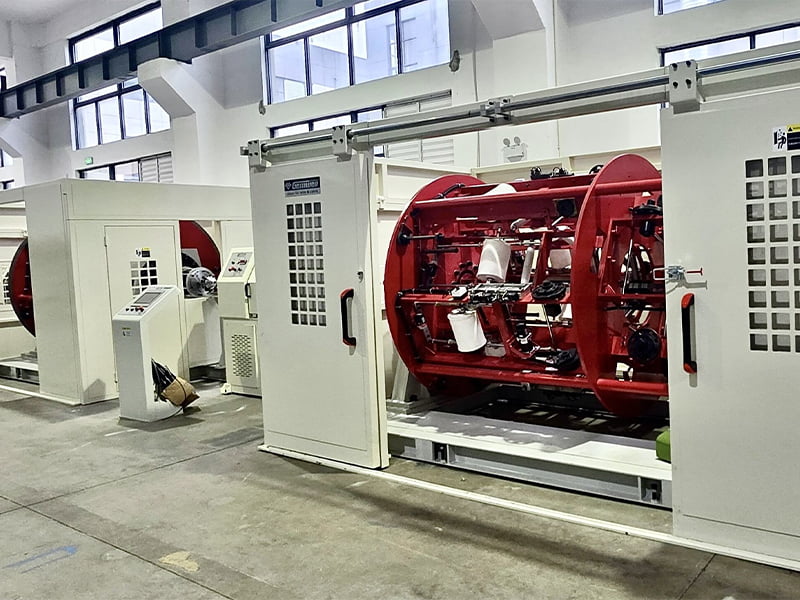

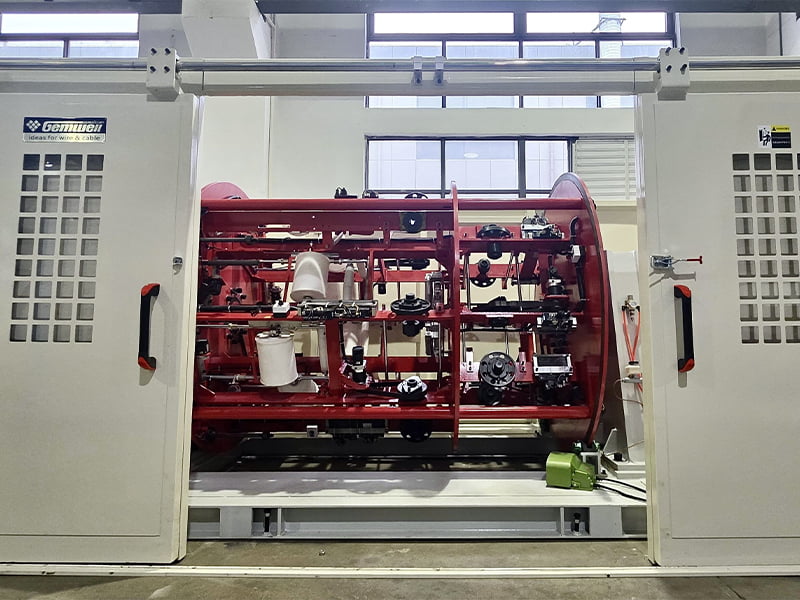

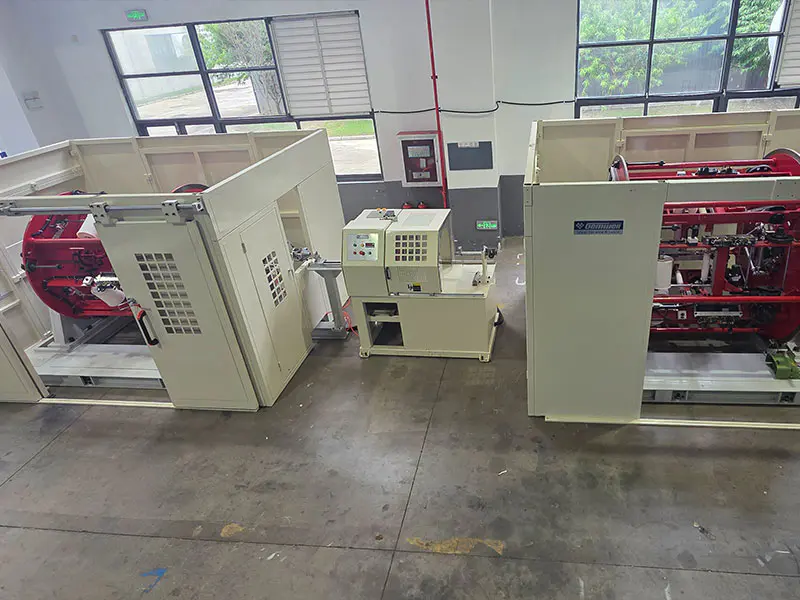

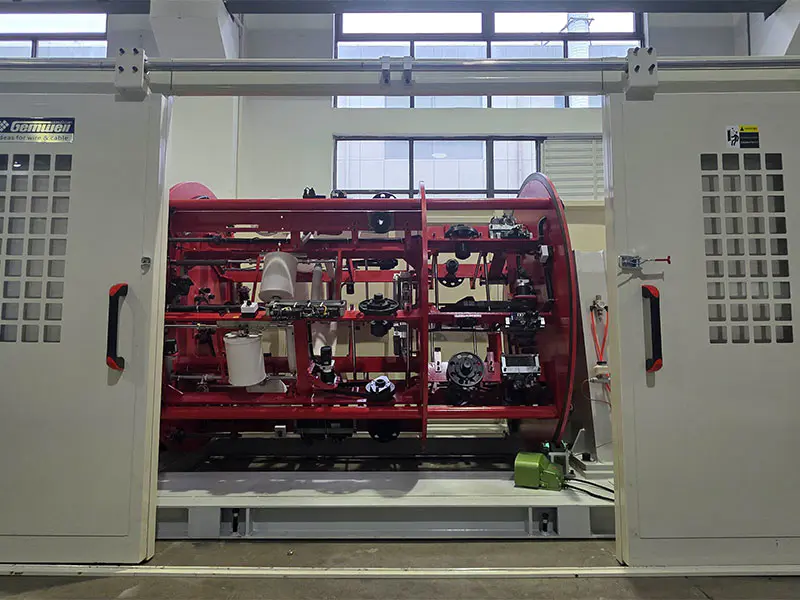

Structure	Disc type rotates, core wire cross-placed within rotate frame, where finish pitch
Cable types	Scale-out interconnection of high-speed cables such as QSFP and SFP in data centers
Core wire specification	Flat wire:2.5X1.2~4X2.0mm(26~38AWG)		Flat wire:2.0X1.0~3.0X1.5mm	Flat wire:3.1X1.75~0.94X0.57mm(24~38AWG)
Finished OD	Ф4.5-10mm	Ф4.5-12mm	Ф4.5-14mm	Ф3.0-7mm	Ф4.5-12mm	Ф4.5-14mm
Rotate speed	MAX100RPM/50HZ			MAX70RPM/50HZ
Production speed	Optimal range: 5–18 m/min. Actual production speed varies according to the customer's twist pitch
Pitch setting	Touch screen +PLC program setting, with communication interface
Pitch range	80~400 mm			80~600 mm
Pitch tolerance	±2%

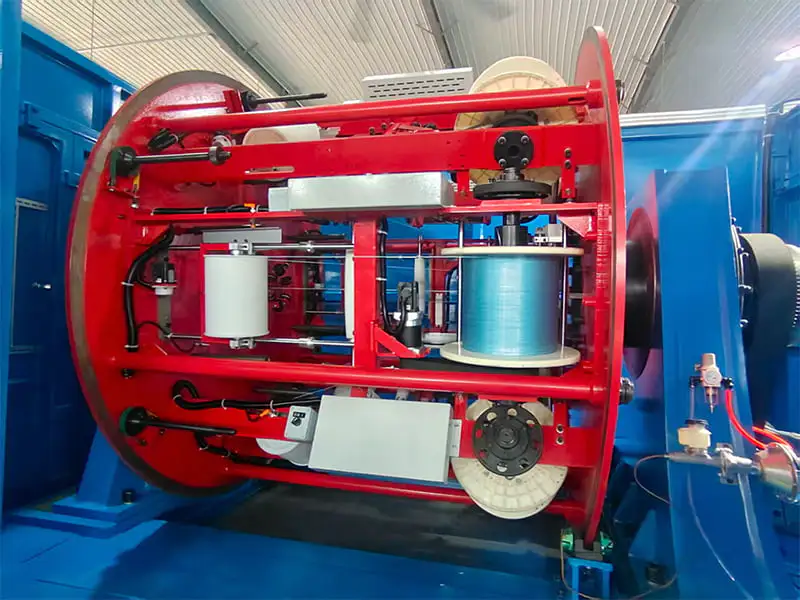

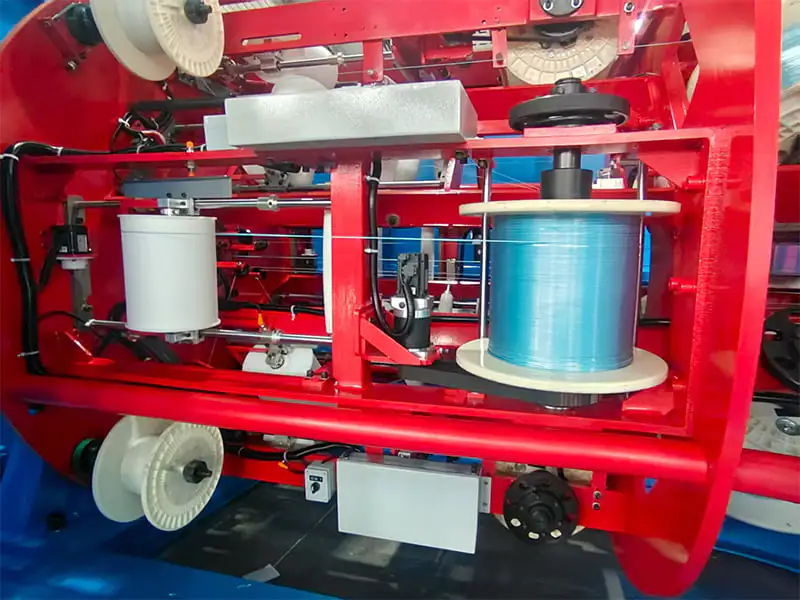

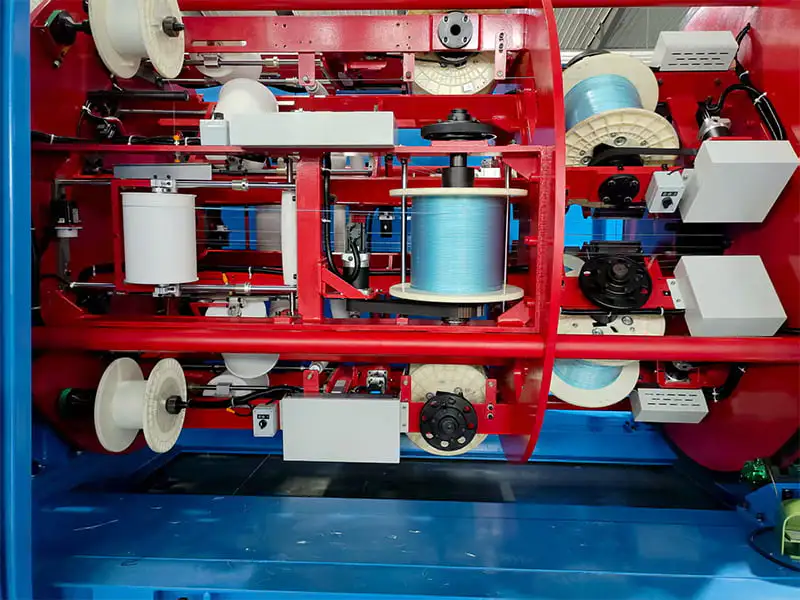

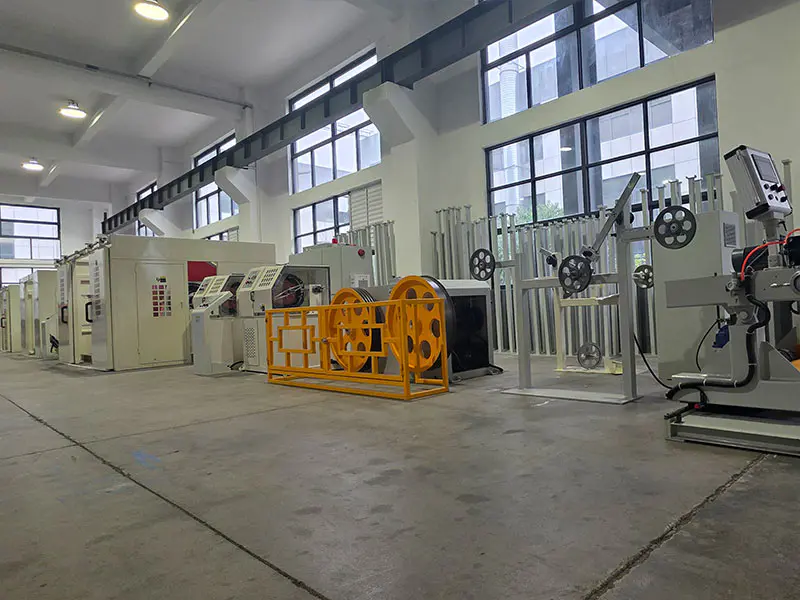

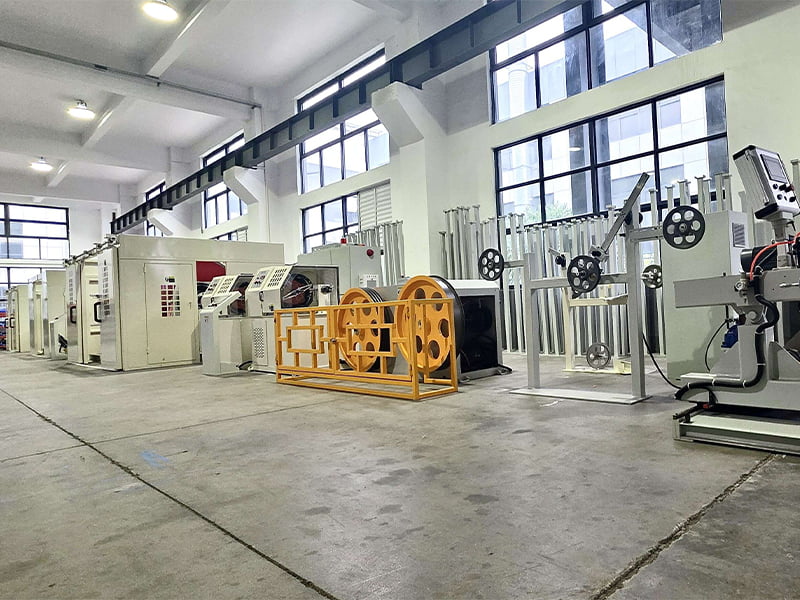

Pay-off type	Pay-off bobbin places rack inside, servo tension control active pay-off
Twist direction	S/Z
Filter pay-off type	Able to add filter, position on interspace of 4 equal reels, with 4 reels in 4 equals, pls remark customized item if require
Braking	Air pressure disc braking, via adjusting magnetic valve and pressure
Reel loading	Shaftless pay off, manual loading and unloading
Cone locator	Wires from branching wheels to cone locator, then into shape collecting pulley base, in case of turnover
Die mold	Cone guide die mold, both collecting mold and twist frame in synchronous rotation
Shape die	Forming hole configuration 1+4, 1+6 or 1+8
Drive power	10HP/7.5KW motor with inverter			15HP/11KW motor with inverter
Tension control	Torque servo stable tension, via feedback from displacement sensor, auto adjusting pay off speed
Line length	20M as standard, or customized
Center height	1100mm
